Why Deblistering?

All blister packs rejected during a production process contain valuable pharmaceuticals. If these highly sensitive products are not returned immediately to the current batch packaging cycle, substantial losses will be incurred. RBP Bauer deblistering machines may then be used to recover your products.

Efficient deblistering increases the efficiency of blister lines. Using RBP machines allows skilled staff to be assigned to more productive tasks, enables the recovery of expensive products and significantly reduces waste disposal costs.

Contact Us

Prodieco is an official representative of RBP Bauer.

RBP Bauer Deblistering Machines

 The right answer to all your deblistering needs





RBP D3600 Machine

Fully Automatic Deblistering Machine

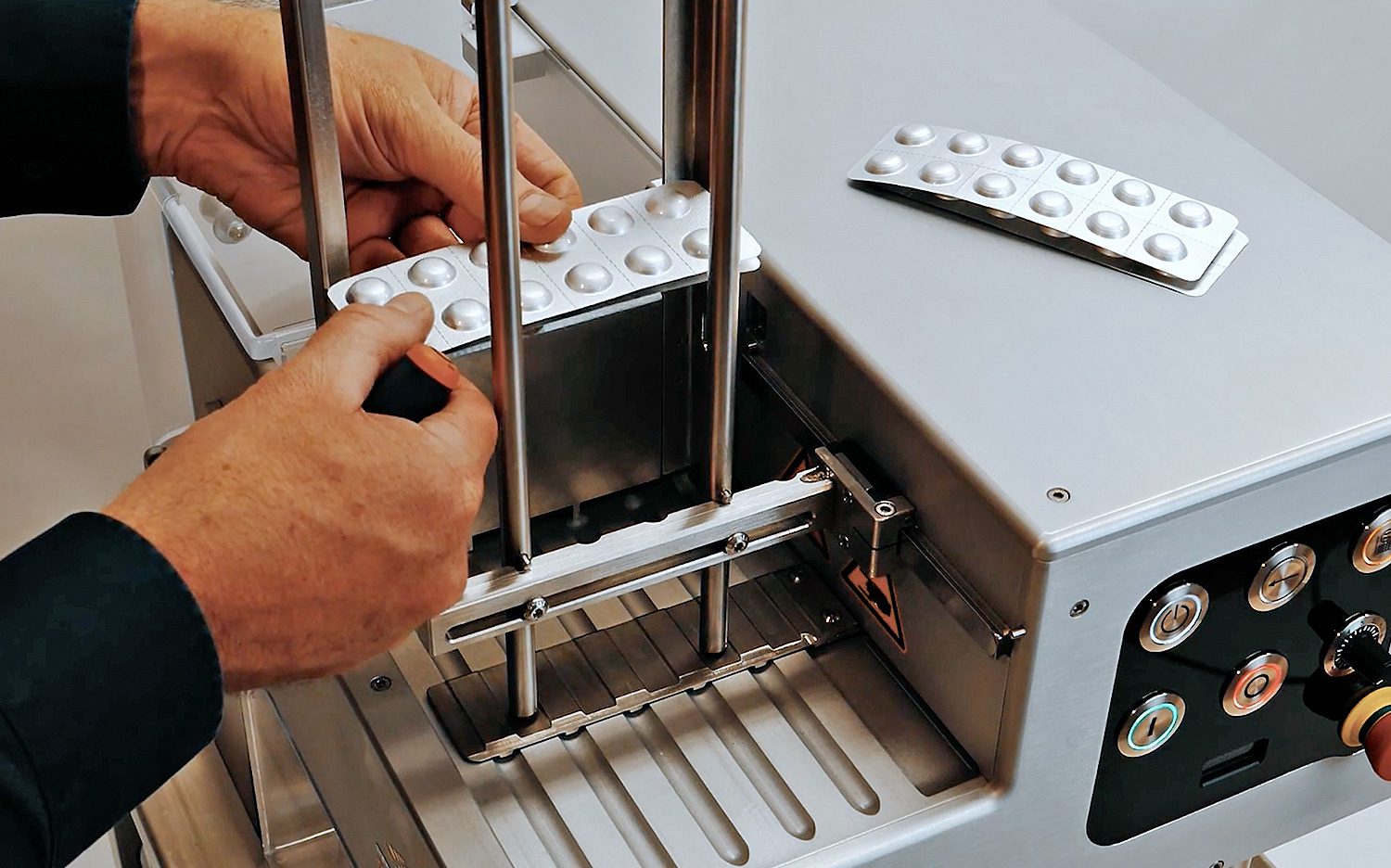

Most of our customers have a D3600 installed near every blister line to improve their batch yield. Equipped with speed control, magazine level monitoring, level sensors, counter and product-specific tool sets the machines ensure gentle and GMP-compliant recovery of pharmaceuticals which can thus be returned to the current production cycle.



The D3600 can handle push-through blisters lengthwise, crosswise or diagonally, depending on the pocket position and the convexity of the blisters. Different product rows can be recovered separately. It is also possible to use a manual feeder, an optional brush roll working in the opposite direction ensures the safe recovery of small products from large AI/AI pockets. Optionally this machine can be plugged into your central vacuum system.

RBP D3600 Machine Features

– GMP-compatible recovery of products for re-use Output: approx. 60 blister/minute;

– Magazine feeding;

– Format change approx. 5 minutes;

– Format range: 150 mm width x 140 mm long No product damages;

– No Alu-residue;

– Easy to clean – No covert product deposit;

– All product contact parts are made of stainless steel (316L on demand).

RBP D2500 Machine

Semi-Automatic Deblistering Machine

Under manufacturing conditions, the D2500, with its two-part tool sets (two rolls), is used to recover smaller quantities. Up to 35 manually fed blisters per minute can be emptied efficiently. For blisters with diagonally arranged pockets, an additional guide plate is required.

For laboratory, galenical formulation, hospital pharmacy and nursing home use, the D2500 Machine is equipped with an optional “adjustable tool kit”. Applications include deblistering of third-party products for clinical studies or the filling of automatic dispensers.

RBP D2500 Machine Features

GMP-compatible recovery of products for re-use Output –

Approx. 40 blister/minute –

Manual feeding –

Format change approx. 2 minutes –

Format range: 150 mm width, length without limit –

No product damages –

No Alu-residue –

Easy to clean – No covert product deposit –

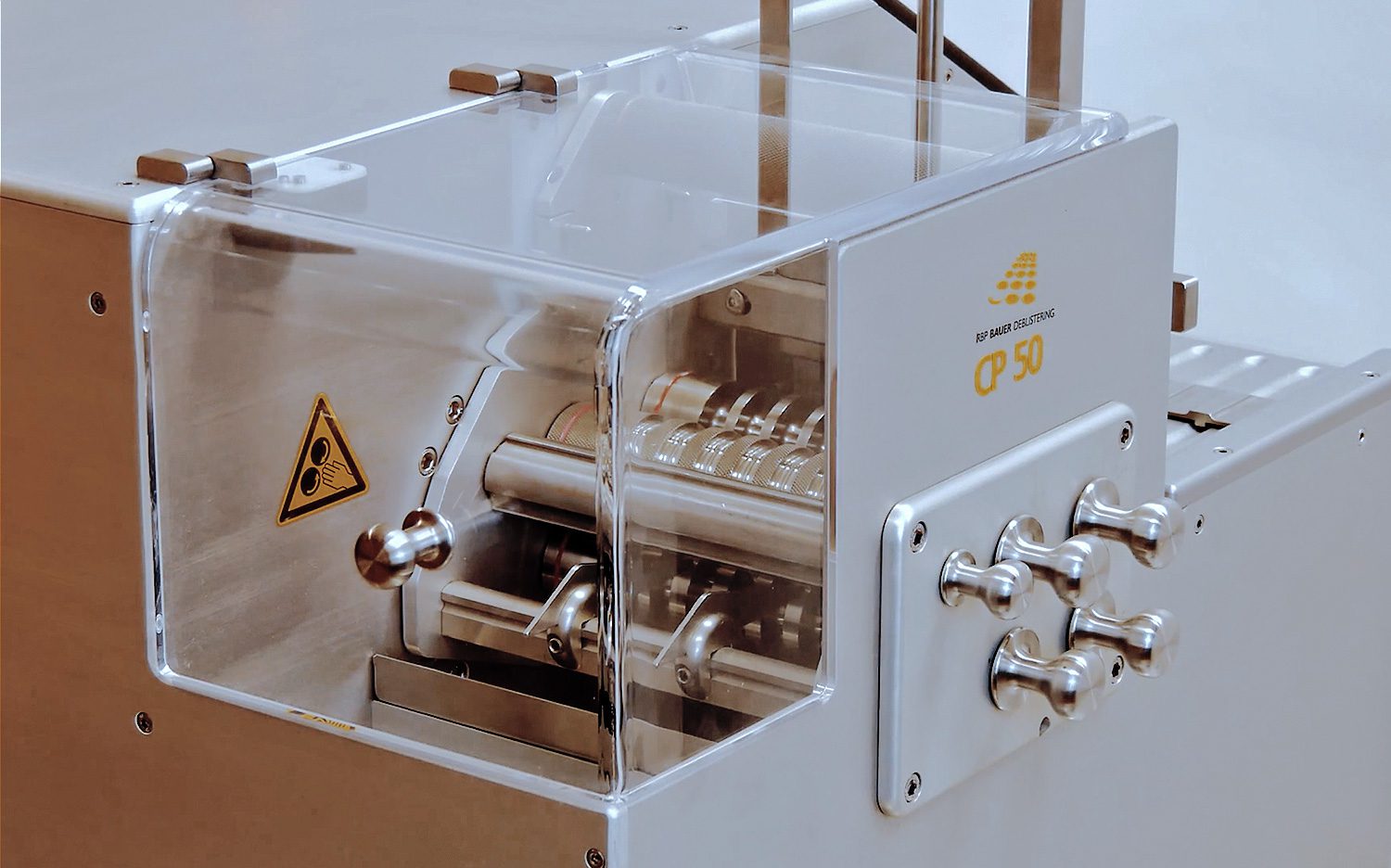

RBP CP50 Machine

Fully Automatic Deblistering Machine

The deblistering machine for peelable blisters. The CP50 Machine is used for emptying blister packs with Non-Push-Through foils. For increased unattainability, for children or protection from moisture, these blisters are fitted with an additional peeling foil which must be pulled off by the consumer.

The patented CP50 model performs deblistering without forcing the products through the foil covering. A laser and PLC-controlled system opens the pockets accurately around the product by punching the peeling and cover foil at the pocket border, causing the product to fall out of the existing opening.

RBP CP50 Machine Features

– GMP-compatible recovery of products for re-use Output: approx. 40-50 blister/minute;

– Magazine feeding;

– Format change approx. 2 minutes;

– RFID – technology for rapid change over (plug and play) Format range: 150 mm width x 120 mm long;

– No product damages – No Alu-residue;

– Easy to clean – No covert product deposit.

RBP D1500 Machine

Manual Deblistering Machine

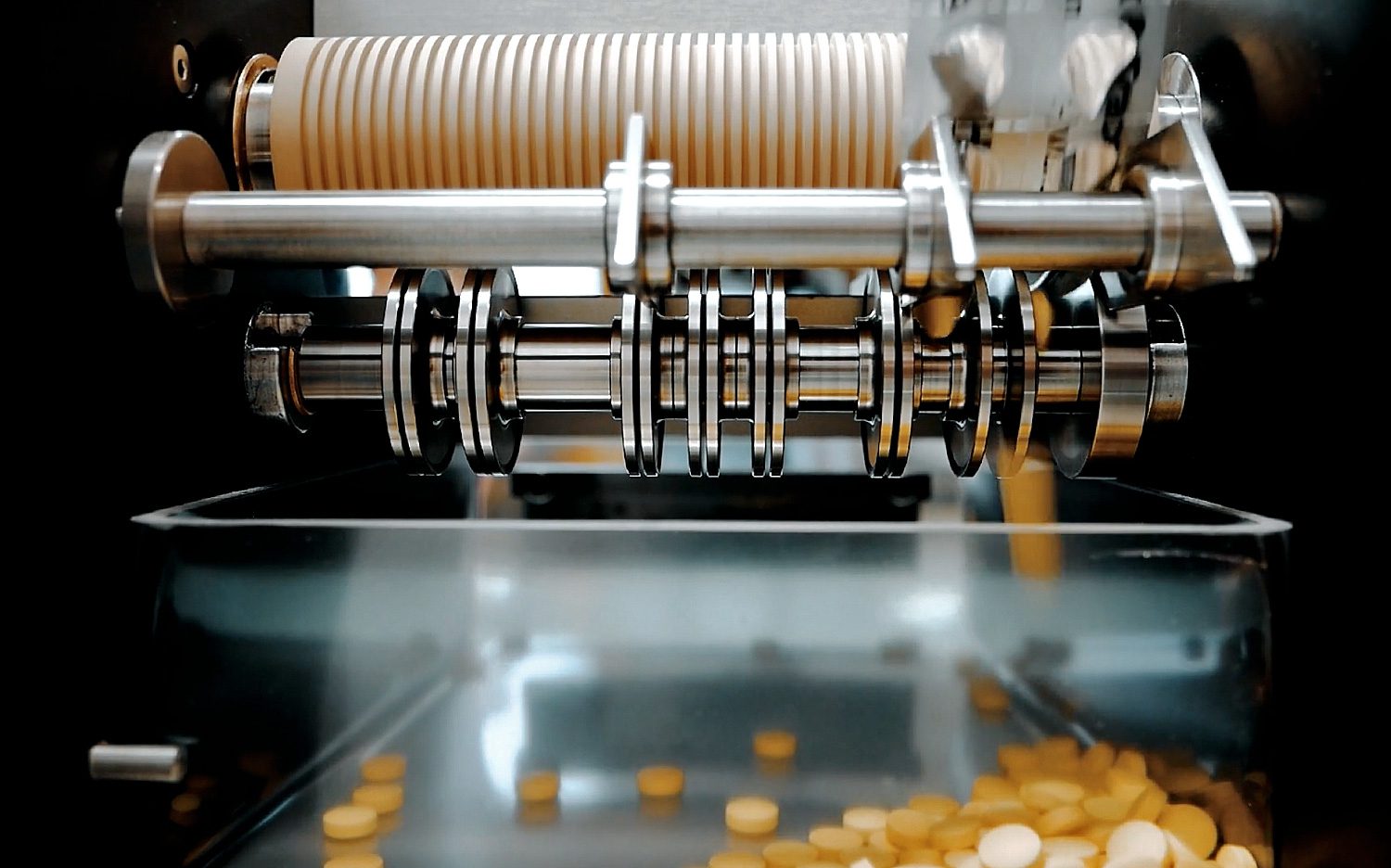

This compact device incorporates a bottom roll with adjustable discs that are infinitely variable for all blister designs. It is operated with minimum effort using a manual crank, requiring no electrical connection. The D1500 Machine is the ideal solution for hospital pharmacies and laboratories.

RBP D1500 Machine Features

GMP-compatible recovery of products for re-use –

Output: approx. 10-15 blister/minute –

Manual operation –

Setup time approx. 2 – 3 minutes –

Format range: 150 mm width, length without limit Universal kit –

No costs for a format set of change parts –

No product damages –

No Alu-residue –

Easy to clean – No covert product deposit.
